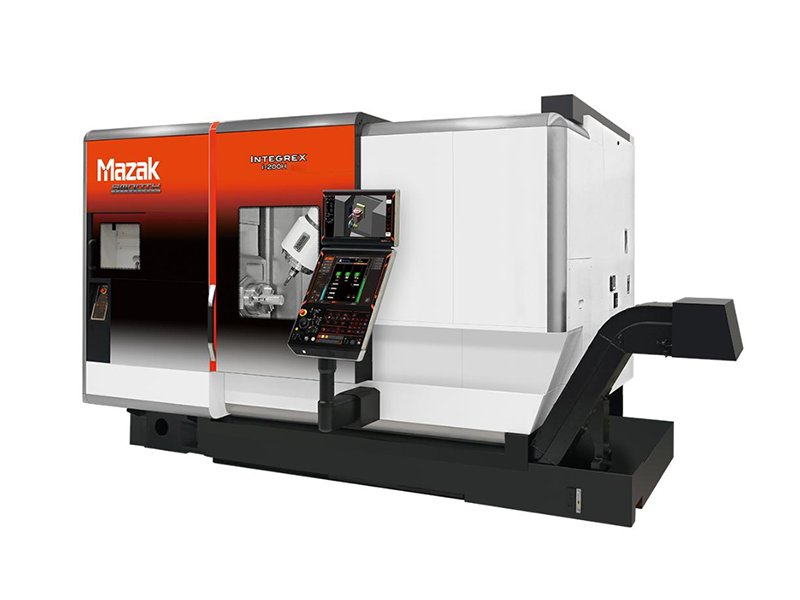

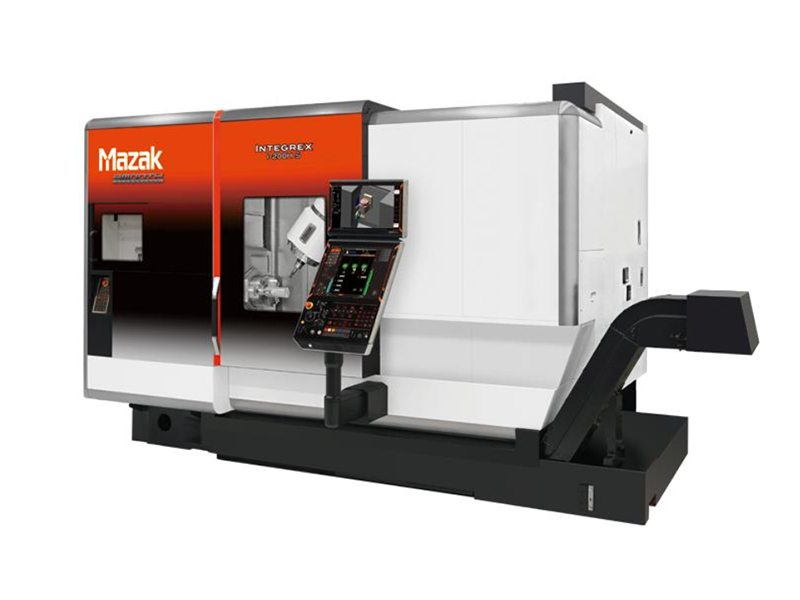

Products: High-precision / complex-shaped / multi-process integrated components, including shaft parts, disc parts and special-shaped parts, suitable for small-batch to medium-batch production of multiple varieties Industries: Aerospace / automotive / automation / medical / precision instruments / general machinery Machine range and precision: Maximum machining diameter Φ670mm; maximum machining length 1011mm for 1000U model, 1519mm for 1500U model; positioning accuracy up to ±0.005mm; minimum B-axis indexing of 0.0001°; stable long-term accuracy with spindle thermal displacement control

Products: High-precision / complex-shaped / integrated components with special tooth profiles (e.g., gears), suitable for small-batch to medium-batch production of gears and precision transmission parts Industries: Aerospace / automotive transmission / automation equipment / precision machinery / medical devices Machine range and precision: Maximum machining diameter Φ670mm; maximum machining length 1011mm for 1000U model, 1519mm for 1500U model; positioning accuracy ±0.005mm; integrated with gear hobbing, shaping and milling functions; minimum B-axis indexing of 0.0001°; optimized precision with on-machine measurement and thermal displacement compensation

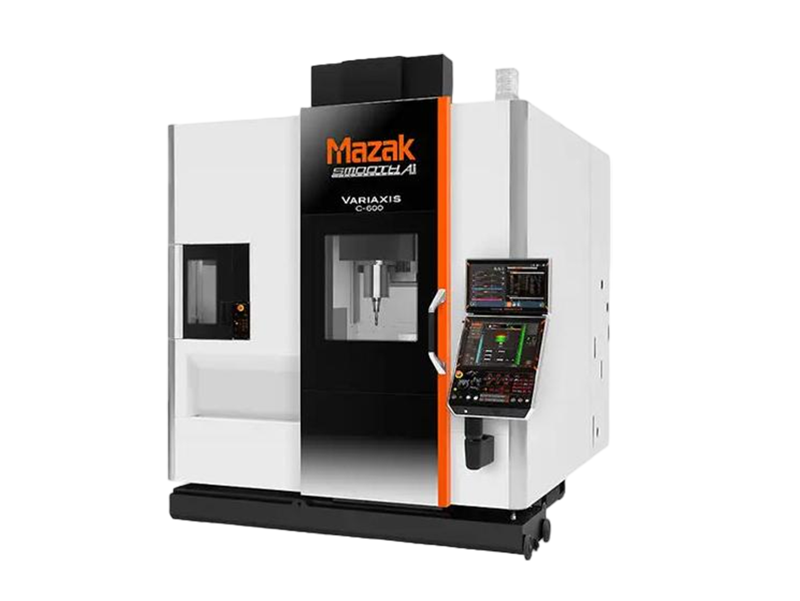

Good for: High-speed and precision milling of complex components such as engine blades, discs, and casings in aerospace; machining of critical structural aircraft parts like wing beams, ribs, and frames; production of complex landing gear components. Manufacturing of turbine blades, nozzles, and compressor housings in energy and heavy equipment; processing of large hydraulic valve blocks and pump casings. High-precision machining of robotic joint arms and reducer core parts in precision machinery; fabrication of medical imaging equipment frames, prosthetics, and surgical instruments. Machine range : (600X420mm) Precision:0.005mm

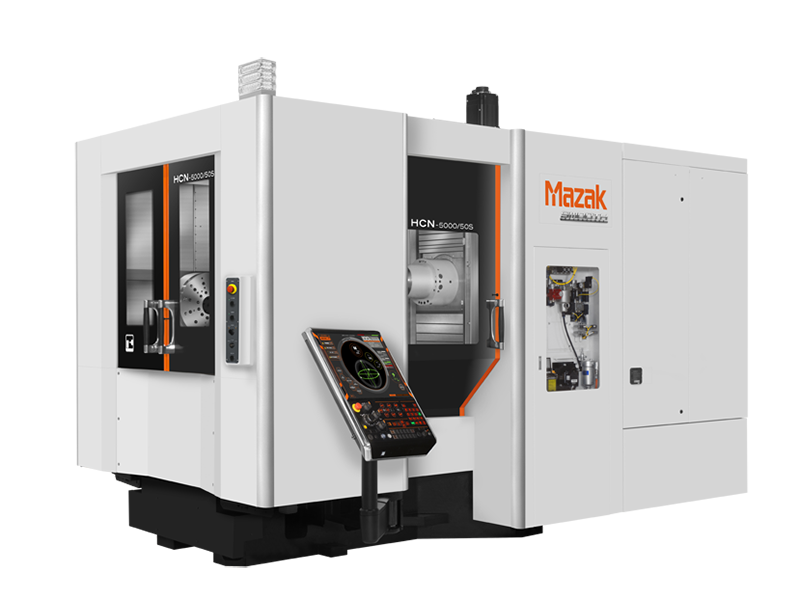

Good for: High-speed milling and drilling of heavy-duty components such as excavator slewing rings and hydraulic valve blocks in construction machinery; precision machining of engine blocks, cylinder heads, and transmission housings in automotive manufacturing; mass production of complex parts including compressor housings, gearboxes, and pump bodies in general machinery, hydraulic components, and energy equipment. Machining range and accuracy: Ø650 × 510 mm Accuracy: 0.005 mm

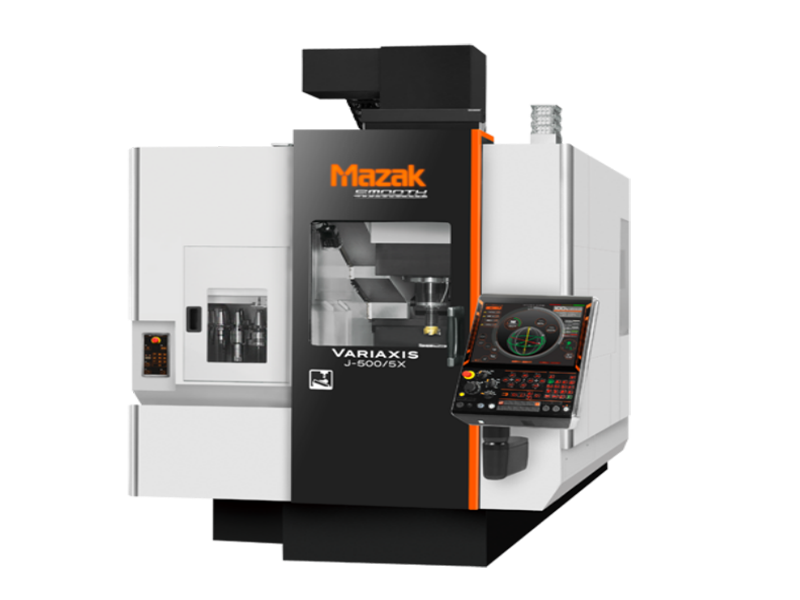

Good for: High-precision machining of gas/steam turbine parts, hydro turbine blades and large pump housings; critical components for medical devices including MRI parts and orthopedic implants; precision frames for optical and semiconductor equipment; lightweight aluminum parts for high-performance motorsports; key components in automotive manufacturing such as engine blocks and transmission housings; compressor casings and hydraulic valve blocks for general machinery. Machining range and accuracy: Ø 500 × 350 mm Accuracy: 0.005 mmAccuracy: 0.005 mm

Turning center with rotary tools Y-axis Equipped with high rigidity integral spindle/motor for unsurpassed machining performance-no gears or belts are used that can generate vibration during machining C-axis indexing in 0.001 increments plus rotary tools mounted on turret provide exceptional versatility High accuracy positioning is ensured by the high rigidity linear roller guides and direct coupled servomotors on all linear axes Machine range: (350X380mm) Precision:0.005mm

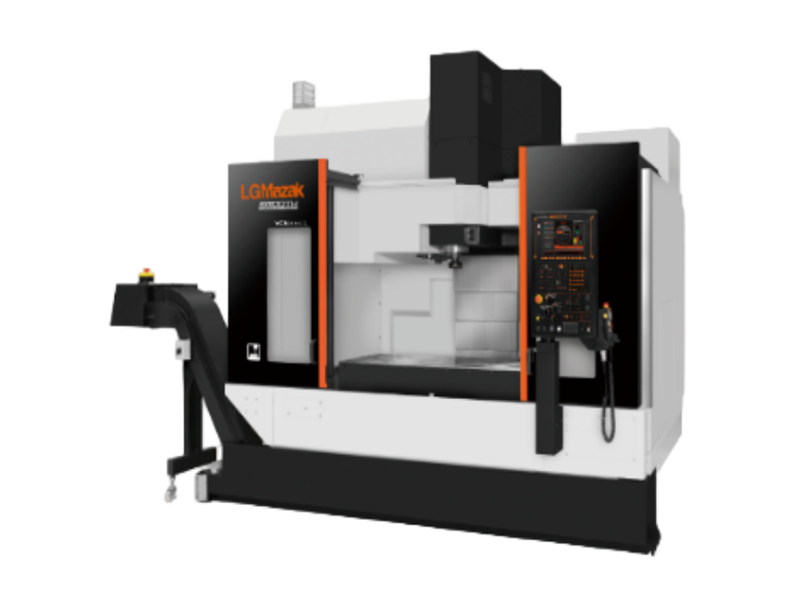

Good for: High-speed milling and drilling of medical and automotive electronics such as portable medical device mainboards, in-vehicle infotainment system prototypes, and various sensor modules; precision machining of specialty products including high-end audio equipment, drone flight controllers, and smart home controllers. Machine range:1300x550x510mm Precision:0.002mm

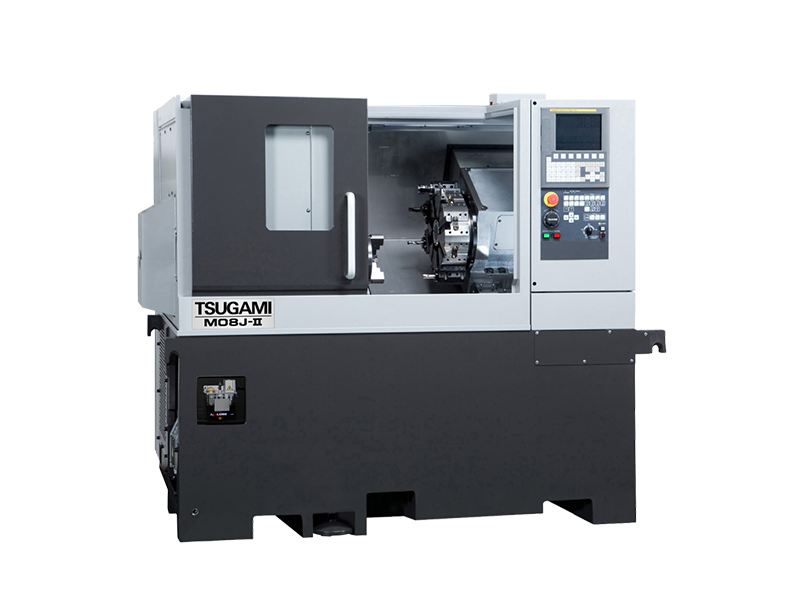

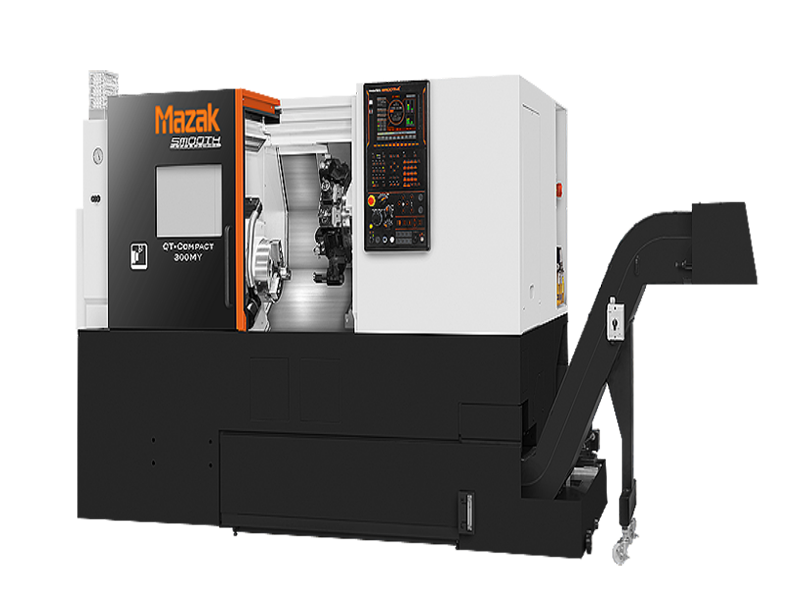

Using Y-axis control,processing complex shapes,the back axis also can be cut surface processing,without two processing,on the one time of turning,drilling,milling and side milling carried out. Good at:aviation machinery parts,food machinery parts,photoelec-tric and mechanical arm parts,medical and nuclear industry,and other related parts processing. Machine range:(320X380mm) Precision:0.005mm

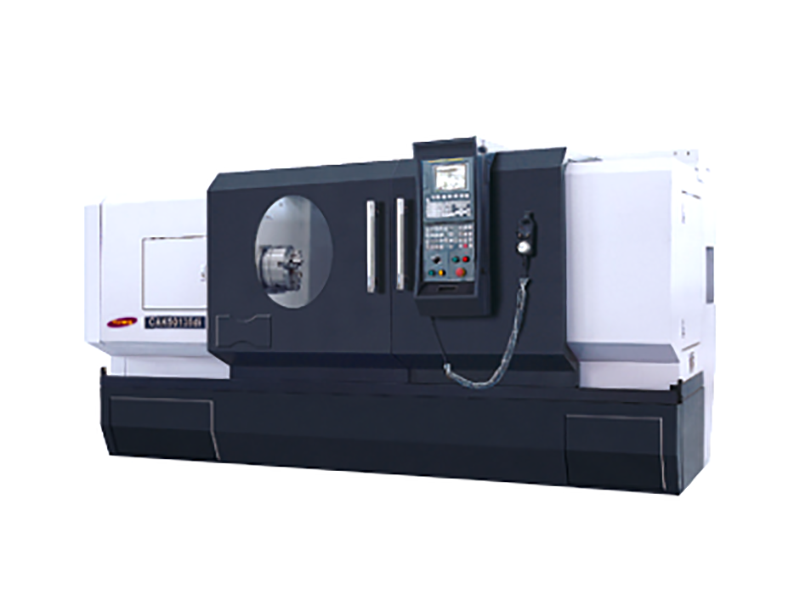

Good for: High-volume turning of shafts and discs like gear shafts, brake discs, and hubs; heavy-duty machining for large transmission shafts, rotors, and flanges in automotive, machinery, and energy sectors. Machining range: 380X1300mm Precision : 0.015mm Swing over bed: Φ500 mm Max. length: 1350 mm Spindle bore: Φ80 mm Spindle speed: 50-1600 rpm Accuracy:Positioning: 0.005 mm Repeatability: 0.003 mm Roundness: 0.0025 mm

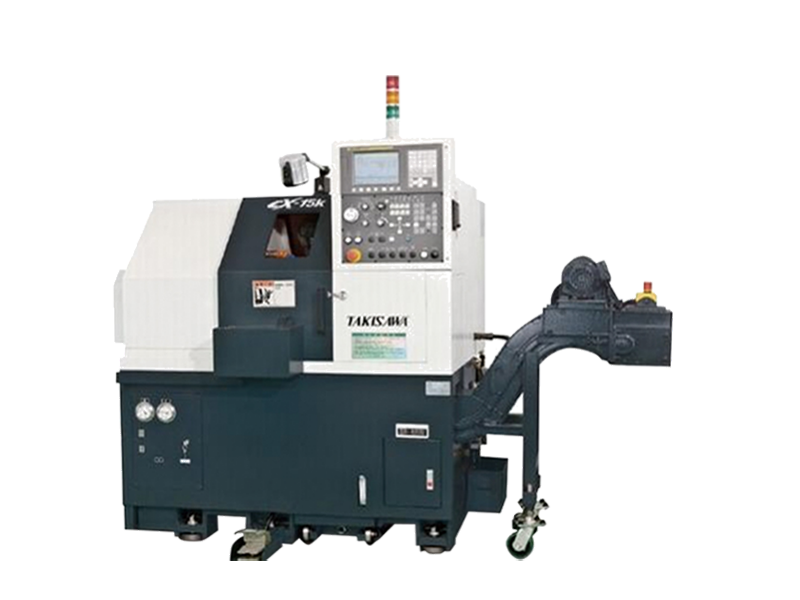

Products:high precision/large quantities/High CPK requirements Industries:medical/optical/lens/automobile/aerospace Machine range: (280X250mm) Precision:0.005mm

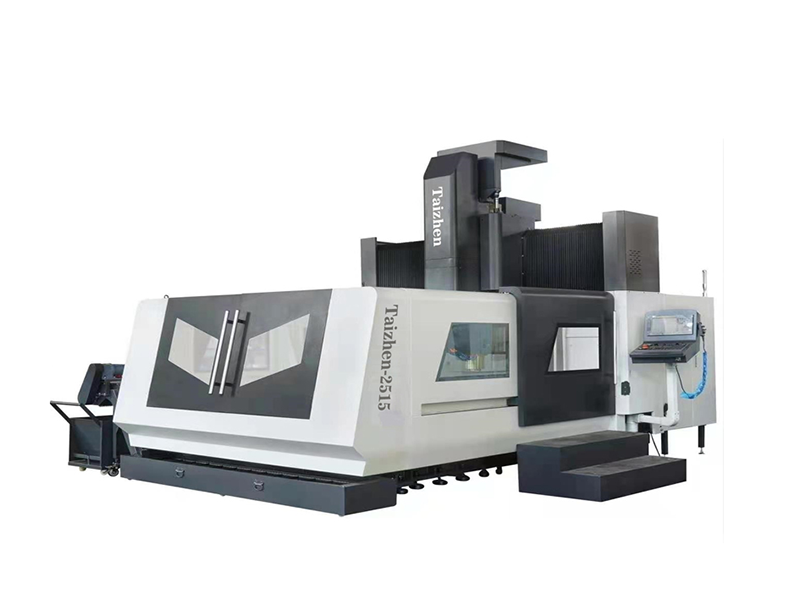

The processing range: (2500X1500X800mm), Precision: ±0.01mm which means it processes large-size work pieces.It can realize high-precision processing and ensure the size and surface quality of the processed parts.multifunction of machining,includingmilling,engraving,cutting,drilling,and more,makes it ideal for machining complex work pieces.Realize automatic production,including automatic tool change,automatic workpiecepositioning,and other functions,reducing operator intervention.With high stability and reliability,it can run for a longtime,save labor costs,and improveproduction efficiency.

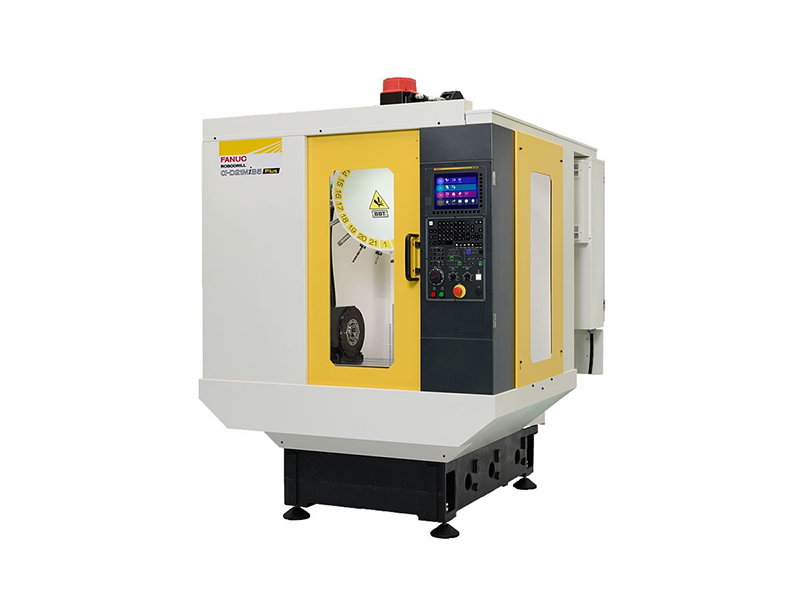

A vertical machining center designed for the high-end market, striving for ultimate efficiency and precision. Leveraging FANUC‘s integrated core technologies, it is a benchmark for high-speed drilling, hard milling, and precision milling in industries such as 3C, precision parts, automotive, and medical. Its micron-level accuracy meets the machining needs of most high-tech applications. Precision:0.005mm Machine range:(500X400X330mm)
